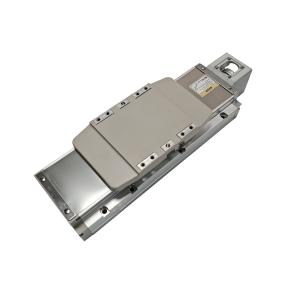

Developed specifically to meet European industrial standards, the MK Series integrates German precision manufacturing craftsmanship with modular design, emerging as a core automation component combining long-stroke expandability and stable load capacity. Its key performance metrics fully address industrial needs: stroke ranges from 100-6000mm, ±0.1mm positioning accuracy suits mid-range scenarios, with horizontal load capacity up to 200KG and vertical load up to 50KG—making it particularly ideal for long-distance handling and multi-station collaboration in European-style production lines.
In real-world industrial settings, the MK Series delivers consistent performance:
- Logistics & Warehousing: Within cross-border e-commerce sorting centers, MK slides with 5000mm stroke drive sorting carts at 2m/s. Their 200KG load capacity easily handles full cartons, while ±0.1mm precision ensures accurate alignment at scanning stations—boosting efficiency by 30% compared to traditional chain conveyors.
- Automotive Assembly: At chassis workstations, MK slides with 50KG vertical load capacity form cantilever systems with robotic arms, responsible for transferring engine components. European standard interfaces enable quick integration with existing KUKA robots, shortening production line modification cycles.
- Electronics Manufacturing: In LCD panel aging workshops, MK slides with 1000mm stroke form circular conveyor lines. Their 50KG load capacity supports high-frequency movements of lifting jigs, and ±0.1mm precision guarantees reliable docking between panels and test interfaces, meeting the demands of 24-hour continuous operation.
The MK Series’ high performance stems from targeted design, overcoming limitations of traditional slides:
- High-Precision Positioning: Equipped with PM high-tension timing belts and precision-machined pulleys, paired with servo closed-loop control, it stably achieves ±0.1mm repeat positioning across the full stroke—ideal for scenarios like automatic labeling and workpiece transfer.
- Strong Horizontal Load Capacity: Featuring a dual-guide rail parallel layout and thickened aluminum alloy sliders, it delivers horizontal dynamic load up to 200KG, capable of carrying heavy components such as automotive gearboxes—offering 40% higher load capacity than traditional single-rail slides.
- Stable Vertical Operation: Built-in anti-fall braking structures, combined with guide rail preloading technology, effectively suppress shaking during lifting. It maintains stability under maximum vertical loads of 50KG, making it suitable for applications like automatic loading/unloading and stereoscopic warehouse stacking.
-
|
※ Basic specifications MK110
|
|
|
|
|
|
Specification
|
Motor speed(rpm/min)
|
10:1
|
15:1
|
20:1
|
|
Max speed(mm/s)*1
|
1250
|
833
|
625
|
|
Max load (kg)
|
Horizontal
|
100
|
150
|
200
|
|
Vertical*2
|
23
|
36
|
50
|
|
Repeatable positioning accuracy(mm)
|
±0.1
|
|
Rated thrust(N)
|
765
|
|
Standard stroke (mm)*3
|
100-6000mm/100 interval
|
|
Component
|
AC servo motor capacity(W)
|
750
|
|
Belt width (mm)
|
50
|
|
High rigidity linear slide (mm)
|
W23XH18
|
|
Origin sensor
|
Plug
|
PM-T45(NPN)
|
-
|
Type
|
Motor speed(rpm/min)
|
Max speed(mm/s)*1
|
Max load(kg)
|
Repeatable positioning accuracy(mm)
|
Rated thrust(N)
|
Standard stroke(mm)*3
|
AC servo motor capacity(W)
|
Belt width(mm)
|
High rigidity linear slide(mm)
|
Origin sensor
|
|
Plug
|
|
Horizontal
|
Vertical*2
|
|
MK65
|
3:1
|
1833
|
30
|
9
|
±0.1
|
220
|
100-6000mm/100mm interval
|
400
|
32
|
W15XH12.5
|
PM-T45(NPN)
|
|
5:1
|
1100
|
45
|
15
|
|
7:1
|
785
|
55
|
16
|
|
10:1
|
550
|
60
|
17
|
|
MK85
|
5:1
|
2000
|
40
|
14
|
±0.1
|
340
|
100-6000mm/100 interval
|
750
|
46
|
W20XH15
|
PM-T45(NPN)
|
|
7:1
|
1428
|
60
|
21
|
|
10:1
|
1000
|
100
|
24
|
|
MK110
|
10:1
|
1250
|
100
|
23
|
±0.1
|
765
|
100-6000mm/100 interval
|
750
|
50
|
W23XH18
|
PM-T45(NPN)
|
|
15:1
|
833
|
150
|
36
|
|
20:1
|
625
|
200
|
50
|
