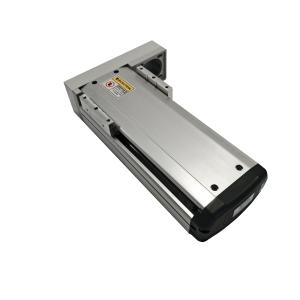

China High precision MK Series Belt Linear Slides Very cost-effective wholesale

High precision MK Series Belt Linear Slides Very cost-effective

Name: High precision MK Series Belt Linear Slides Very costeffective
Brand: SXEGL
Price: 300 USD

Ask Latest Price

Video Channel

Brand Name :SXEGL

Model Number :MK85

Certification :CE/FCC/EPA/ROSH/ISO

Place of Origin :CHINA

MOQ :1

Price :300-1000

Payment Terms :L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability :Worldwide delivery

Delivery Time :5-45

Packaging Details :Carton and foam

Repeatable positioning accuracy(mm) :±0.1

Rated thrust(N) :340

Standard stroke(mm)*3 :100-6000mm/100mm interval

AC servo motor capacity(W) :750

Belt width(mm) :46

High rigidity linear slide(mm) :W20XH15

Contact Now

Add to Cart

View Product Description

High precision MK Series Belt Linear Slides Very cost-effective

The MK Series EU-Spec Synchronous Belt Linear Slides are high-performance linear modules compliant with European standards. Integrating German precision craftsmanship and modular design, they combine long-stroke expandability with high load stability, making them suitable for a wide range of automated systems.

This series boasts a stroke range of 100-6000mm, a repeat positioning accuracy of ±0.1mm, a maximum horizontal load of 200kg, and a vertical load of 50kg. It is widely used in medium-to-long-distance, multi-station production lines across logistics, automotive assembly, and warehouse automation sectors.

Typical Applications

1. Logistics Sorting

The 5000mm-stroke model is employed here, handling full-carton loads while operating at 2m/s. Its precise positioning not only ensures reliable workflow but also boosts efficiency by 30%.

2. Automotive Assembly

With a 50kg vertical load capacity, the slide works with robots to lift and transfer engine components. Its EU-standard interfaces facilitate quick integration into existing production setups.

3. Aging Test Lines

Multiple 1000mm-stroke slides are configured into a circular conveyor system. They provide stable support for high-frequency lifting movements and ensure precise alignment between components, meeting the demand for 24/7 continuous operation.

Core Advantages

Superior Precision: Adopting high-tension synchronous belts and precision-machined pulleys, it achieves a repeat positioning accuracy of ±0.1mm.
Heavy-Duty Horizontal Performance: Featuring dual guide rails with thickened sliders, it supports a horizontal load of 200kg—representing a 40% increase in load capacity compared to single-rail designs.
Safe & Stable Vertical Operation: Equipped with built-in anti-fall braking and preloaded guide rails, it handles a 50kg vertical load while ensuring safe and stable lifting.

Technical Specifications

※ Basic specifications MK85
Specification	Motor speed(rpm/min)			5:1	7:1	10:1
	Max speed(mm/s)*1			2000	1428	1000
	Max load(kg)		Horizontal	40	60	100
			Vertical*2	14	21	24
	Repeatable positioning accuracy(mm)			±0.1
	Rated thrust(N)			340
	Standard stroke(mm)*3			100-6000mm/100 interval
Component	AC servo motor capacity(W)			750
	Belt width (mm)			46
	High rigidity linear slide(mm)			W20XH15
	Origin sensor	Plug		PM-T45(NPN)

Model	Motor speed (rpm/min)	Max speed (mm/s)	Max load (kg)	Repeatable positioning accuracy (mm)	Rated thrust (N)	Standard stroke (mm)	AC servo motor capacity (W)	Belt width (mm)	High rigidity linear slide (mm)	Origin sensor
MK65	3:1	1833	30 (H) 9 (V)	±0.1	220	100-6000mm /100mm interval	400	32	W15XH12.5	PM-T45(NPN)
	5:1	1100	45 (H) 15 (V)
	7:1	785	55 (H) 16 (V)
	10:1	550	60 (H) 17 (V)
MK85	5:1	2000	40 (H) 14 (V)	±0.1	340	100-6000mm /100 interval	750	46	W20XH15	PM-T45(NPN)
	7:1	1428	60 (H) 21 (V)
	10:1	1000	100 (H) 24 (V)
MK110	10:1	1250	100 (H) 23 (V)	±0.1	765	100-6000mm /100 interval	750	50	W23XH18	PM-T45(NPN)
	15:1	833	150 (H) 36 (V)
	20:1	625	200 (H) 50 (V)

*1 Max speed values are approximate and may vary based on application conditions

*2 Vertical load capacity assumes proper installation and safety factors

*3 Custom stroke lengths available upon request
