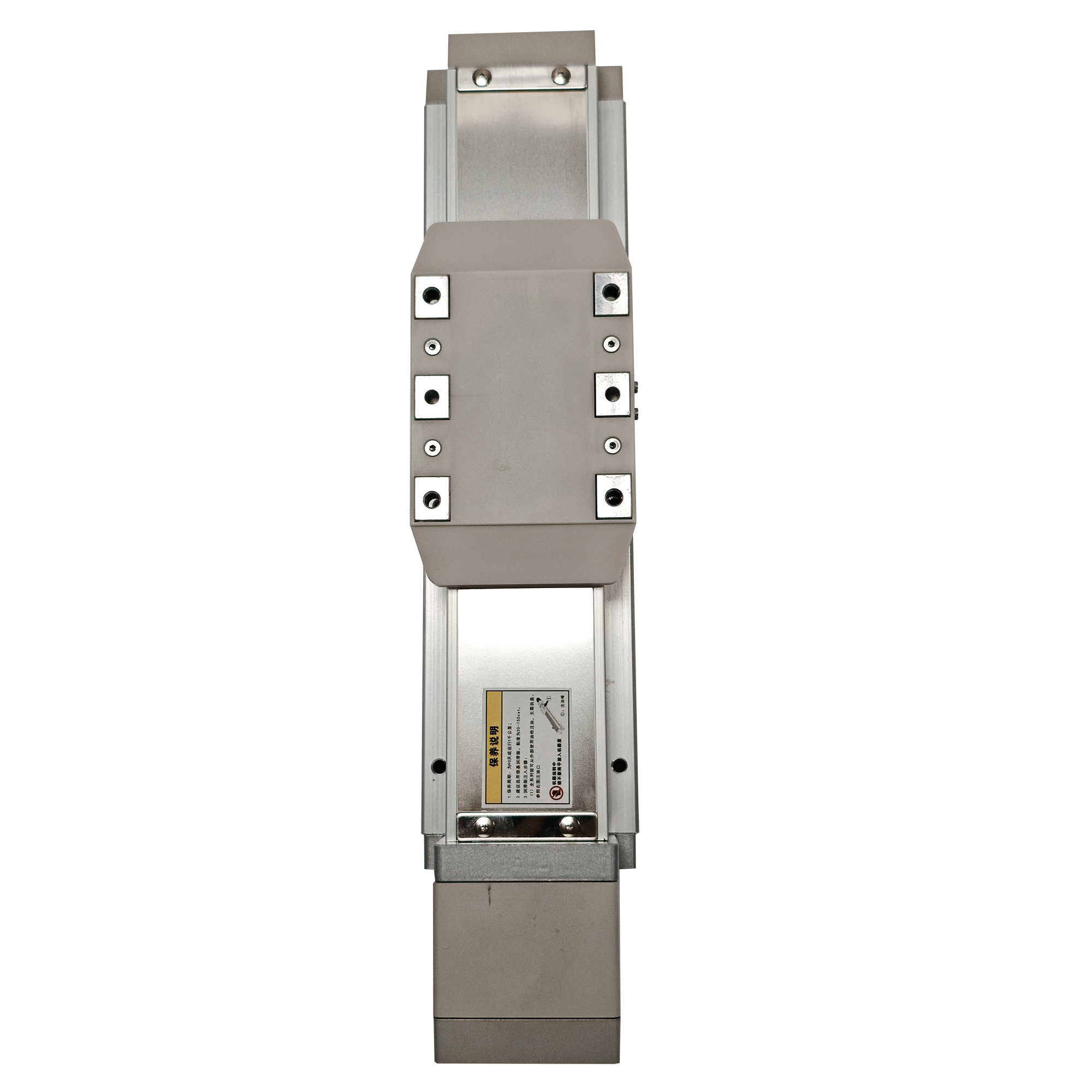

MK Series European Standard Belt-Driven Linear Sliders are engineered in compliance with European industrial standards, integrating German precision manufacturing and modular design. These high-performance linear modules are ideal for long-stroke and high-load applications. With a travel range of 100–6000 mm, positioning accuracy of ±0.1 mm, and a maximum load capacity of 200 kg horizontally and 50 kg vertically, they are well-suited for a variety of industrial scenarios such as logistics conveying, automotive assembly, and warehouse automation. They are particularly adapted to long-distance transport and multi-station coordination within European-style production line layouts.
Typical Applications
-
Logistics and Warehouse Automation: Used as the main drive axis for sorting carts, operating at speeds of up to 2 m/s while carrying full-case goods. The ±0.1 mm accuracy ensures precise scanning and positioning, increasing sorting efficiency by 30%.
-
Automotive Assembly Lines: Combined with robotic arms to form suspended handling systems, these sliders enable vertical lifting and horizontal transfer of components such as engines. Their European-standard interfaces allow quick integration with robots such as KUKA.
-
Electronics Aging Test Lines: Multiple sliders form a cyclic conveying system, supporting frequent lifting and lowering of test fixtures. They ensure reliable connection between display panels and test interfaces, meeting 24/7 continuous operation demands.
Key Advantages
-
High Positioning Accuracy: Equipped with high-tension synchronous belts and precision-machined pulleys, combined with servo closed-loop control, achieving repeatability of ±0.1 mm. Ideal for automated labeling and workpiece transfer tasks.
-
High Load Capacity for Horizontal Movement: The dual-guide parallel layout and reinforced aluminum alloy sliders support horizontal loads up to 200 kg, capable of carrying heavy components like gearboxes and robotic arms—a 40% improvement over single-rail systems.
-
Stability in Vertical Applications: Featuring anti-fall brake mechanisms and preloaded guide rails, these sliders handle vertical loads up to 50 kg while minimizing sway during lifting—suitable for automated loading/unloading and stacker crane applications.
Technical Specifications
| ※ Basic specificationsMK110 |
|
|
|
|
| Specification |
Motor speed(rpm/min) |
10:1 |
15:1 |
20:1 |
| Max speed(mm/s)*1 |
1250 |
833 |
625 |
| Max load (kg) |
Horizontal |
100 |
150 |
200 |
| Vertical*2 |
23 |
36 |
50 |
| Repeatable positioning accuracy(mm) |
±0.1 |
| Rated thrust(N) |
765 |
| Standard stroke (mm)*3 |
100-6000mm/100 interval |
| Component |
AC servo motor capacity(W) |
750 |
| Belt width (mm) |
50 |
| High rigidity linear slide (mm) |
W23XH18 |
| Origin sensor |
Plug |
PM-T45(NPN) |
| Model |
Motor speed (rpm/min) |
Max speed (mm/s) |
Max load (kg) |
Repeatable positioning accuracy (mm) |
Rated thrust (N) |
Standard stroke (mm) |
AC servo motor capacity (W) |
Belt width (mm) |
High rigidity linear slide (mm) |
Origin sensor |
| MK65 |
3:1 |
1833 |
30 (H)
9 (V) |
±0.1 |
220 |
100-6000mm /100mm interval |
400 |
32 |
W15XH12.5 |
PM-T45(NPN) |
| 5:1 |
1100 |
45 (H)
15 (V) |
| 7:1 |
785 |
55 (H)
16 (V) |
| 10:1 |
550 |
60 (H)
17 (V) |
| MK85 |
5:1 |
2000 |
40 (H)
14 (V) |
±0.1 |
340 |
100-6000mm /100 interval |
750 |
46 |
W20XH15 |
PM-T45(NPN) |
| 7:1 |
1428 |
60 (H)
21 (V) |
| 10:1 |
1000 |
100 (H)
24 (V) |
| MK110 |
10:1 |
1250 |
100 (H)
23 (V) |
±0.1 |
765 |
100-6000mm /100 interval |
750 |
50 |
W23XH18 |
PM-T45(NPN) |
| 15:1 |
833 |
150 (H)
36 (V) |
| 20:1 |
625 |
200 (H)
50 (V) |
*1 Max speed values are approximate and may vary based on application conditions
*2 Vertical load capacity assumes proper installation and safety factors
*3 Custom stroke lengths available upon request
