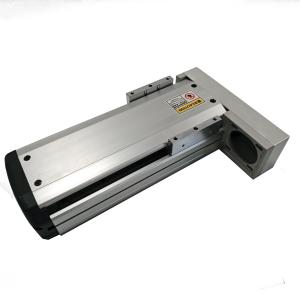

Effective Dustproof M-Series Timing Belt Linear Stage Wide Application Range
The M80 Timing Belt Linear Stage is a core executive component for high-speed, precision automation systems. Adopting a Japanese-standard semi-enclosed structure, it not only ensures high efficiency during transmission but also minimizes operational deviations through its stable design, making it suitable for various high-precision automation scenarios.
- High-Speed Response: Boasts a maximum operating speed of 2500 mm/s and a stroke range of 100–6000 mm. For every 100 mm increase in stroke, it can intelligently adjust its operating speed to effectively avoid resonance risks, meeting the needs of high-frequency material transfer.
- Precise Positioning: Maintains a stable repetitive positioning accuracy of ±0.01 mm, and retains the same precision even in closed-loop control mode. It is fully suitable for position error-sensitive operations such as precision conveying and accurate assembly.
- Strong Adaptability: Supports two mounting methods—internal locking and external locking—and is compatible with mainstream motor brands like Mitsubishi and Yaskawa. It can also be customized with a double-slider split-movement structure, easily adapting to different equipment layouts such as horizontal installation and side mounting.
- Long-Durability: Features a load service life of up to 10,000 km, while integrating protection and real-time detection functions. This reduces the frequency of daily maintenance and lowers long-term operating costs.
- Load Capacity: Ranges from 5 kg to 75 kg, with optional reduction ratios of 3:1 to 10:1, suitable for transferring materials of different weights.
- Customization Options: Supports three designs—left-output shaft, right-output shaft, and dual-output shaft. It can be additionally equipped with 3 or more photoelectric sensors, flexibly matching the functional needs of non-standard automation equipment.
In addition to automated conveying and robotic arm collaboration, it is also widely used in scenarios such as precise transfer of PCB boards in the 3C electronics industry, auxiliary movement for wafer inspection in the semiconductor sector, transportation of battery pole pieces in the new energy industry, and high-speed sorting and positioning in the packaging industry. It has become a preferred module in automation equipment that balances efficiency and precision.
Technical Specifications
| M80 |
|
|
|
|
|
|
|
|
| Standard motor output (W) |
400W |
750W |
| rated torque(N ·m) |
1.3 |
2.4 |
| Repeatable positioning accuracy(mm) |
±0.1 |
| Rated thrust (N) |
180 |
340 |
| Longest stroke(mm) |
100-6000mm/Interval 100mm |
| Timing belt specifications |
25×5(Lead 150mm) |
| Gear ratio |
3:1 |
5:1 |
7:1 |
10:1 |
3:1 |
5:1 |
7:1 |
10:1 |
| Maximum speed(mm/s) |
2500 |
1500 |
1071 |
750 |
2500 |
1500 |
1071 |
750 |
| Maximum horizontal |
18 |
30 |
45 |
60 |
28 |
40 |
53 |
75 |
| Load(kg) vertical |
5 |
9 |
13 |
17 |
8 |
12 |
16 |
23 |
| Base weight Omm Stroke kg |
11.64 |
Increase weight every100mm Stroke Kg |
0.72 |
| Photoelectric switch |
PM-T45 |
NPN Type Cable length:1M |
| PM-T45-P |
PNP Type Cable length:1M |
| Briquettes |
The details were specified on page 198 |
Additional Specifications
| Type |
Standard motor
output (W)
|
rated
torque(N ·m)
|
Repeatable
positioning
accuracy
(mm)
|
Rated thrust (N) |
Longest
stroke(mm)
|
Timing belt specifications |
Gear ratio |
Maximum speed(mm/s) |
Maximum Load(kg) |
Base weight Omm Stroke kg |
Increase weight every100
mm Stroke
Kg
|
Photoelectric switch |
Briquettes |
| horizontal |
vertical |
| M55X |
200W |
0.64 |
±0.1 |
45 |
100-3000mm
/Interval 100mm
|
25×5(Lead 150mm) |
1:1 |
7500 |
3 |
3 |
0.45 |
PM-T45 |
PM-T45-P |
The details were specified on page 198 |
| 3:1 |
2500 |
5 |
| 5:1 |
1500 |
8 |
| 400W |
1.3 |
89 |
1:1 |
7500 |
5 |
NPNtype Cable length:1M |
PNPtype Cable length:1M |
| 3:1 |
2500 |
8 |
| 5:1 |
1500 |
12 |
| M80 |
400W |
1.3 |
±0.1 |
180 |
100-6000mm
/Interval 100mm
|
25×5(Lead 150mm) |
3:1 |
2500 |
18 |
5 |
11.64 |
0.72 |
PM-T45 |
PM-T45-P |
The details were specified on page 198 |
| 5:1 |
1500 |
30 |
9 |
| 7:1 |
1071 |
45 |
13 |
| 10:1 |
750 |
60 |
17 |
| 750W |
2.4 |
340 |
3:1 |
2500 |
28 |
8 |
NPN Type Cable length:1M |
PNP Type Cable length:1M |
| 5:1 |
1500 |
40 |
12 |
| 7:1 |
1071 |
53 |
16 |
| 10:1 |
750 |
75 |
23 |
| M112 |
750W |
2.4 |
±0.1 |
765 |
100-6000mm
/Interval100mm
|
45×5(Lead 220mm) |
7:1 |
1571 |
70 |
15 |
19.85 |
0.94 |
PM-T45 |
PM-T45-P |
The details were specified on page 198 |
| 10:1 |
1100 |
100 |
23 |
| 15:1 |
733 |
150 |
36 |
NPN Type Cable length:1M |
PNP Type Cable length:1M |
| 20:1 |
550 |
200 |
50 |
Note: Additional specifications for M80 and M112 models available upon request.
